240-700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes

Name: 240700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes
Brand: BENO
Price: 73 USD

Best 240-700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes wholesale

Brand Name : BENO

Model Number : XCDRS1010

Certification : CE, ISO9001

Place of Origin : Sichuan, China

MOQ : 1 set

Price : USD 73,972.60-87,096.77 one set

Payment Terms : L/C, T/T

Supply Ability : 200 sets / year

Delivery Time : 30 days

Packaging Details : Simple Package

Roll Surface Width : 1000 mm

Number of Axes : 10

Throughput : 240-700 TPH

Feed Side Length : Less Than 500 mm

Roll Shaft Clearance : 25-100 mm

Application : Screening

Contact Now

240-700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes

Product Description

This equipment is called Roller Screening Machine, and the model is XCDRS1010. It is an essential equipment in the mine transportation and screening system. The Roller Screening Machine can improve the working efficiency of the crusher and reduce the electric energy consumption and metal wear of the crusher. It has strong adaptability to ores, especially for ores with high water content, and is not easy to cause material blockage.

This Roller Screening Machine has a width of 1000mm, with 10 toothed rollers, and the tooth shape is "plum shape". Its material throughput is between 240-700 tons per hour, which is suitable for the ore screening site of small and medium-sized mines.

Technical Reference Data

Model	Roll surface width (mm)	Number of axes	Throughput (t/h)	Feed side length (mm)	Roll shaft clearance (mm)	Screening efficiency (%)	Installed power		Flap drive push rod (optional for for electro hydraulic users)
							Power (kw)	Number	Model	Thrust (kgf)	Power (w)
XCDRS1008	1000	8	200-550	≤500	25-100	80	2-4	8	DT or DTY	300	370
XCDRS1010		10	240-700			85	3-3.5	10
XCDRS1012		12	300-850			90		12
XCDRS1408	1400	8	420-1000	≤700	35-120	80		8	DT or DTY	500	750
XCDRS1410		10	520-1280			85	3-7.5	10
XCDRS1412		12	650-1500			90		12

Note: The production capacity in the table is based on the minerals whose feed size is smaller than the feed side length, and the loose density is 1.6t/m ³ (Stone density is 2.7t/m ³). Based on continuous and uniform feeding of medium hardness rock.

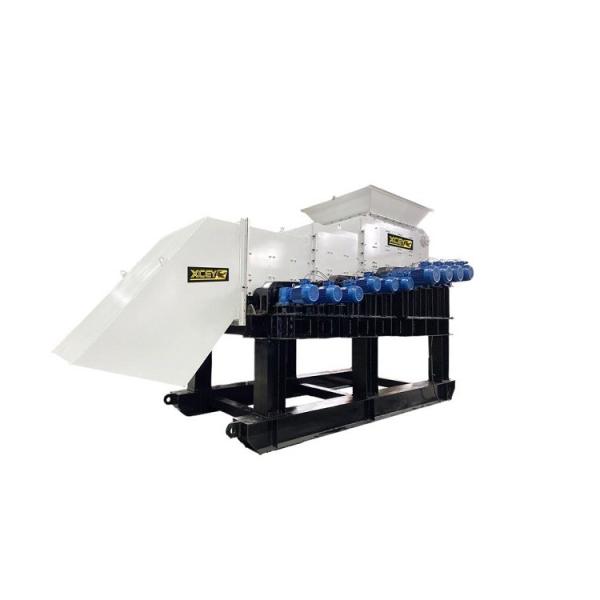

Equipment Display

240-700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes

Our History

240-700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes
